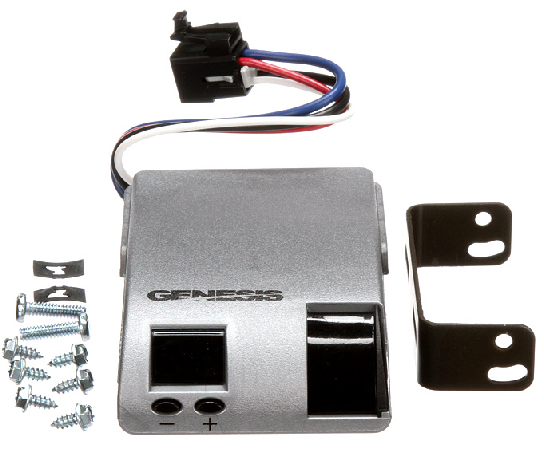

The Genesis® from Hayes is the top-of-the-line smooth, intelligent trailer electric brake controller with a power boost feature that allows you to you apply full power when needed to react to emergency stopping situations. The three-axis accelerometer technology automatically levels and senses the rate of deceleration. The Genesis® is recommended for all trailers with single to quad-axles and comes with a limited lifetime warranty.
Features and Benefits
Exclusive Quik-Connect® feature
100% solid state for dependable trailer braking
Self-levelling which improves accuracy in braking
Automatically adjust to road conditions and changes in braking situations
Easy to read display
Manual Lever – provides manual braking and illuminates the trailer lights while braking
Boost Feature gives you the ability to apply more initial braking power when towing heavier trailers
For use with Electric and Electric-Over Hydraulic braking systems
The Genesis in-cab brake controller gives you complete control of your trailer brakes from inside your tow vehicle. Each time you press your brake peddle,the brake controller sends a proportional signal to your EOH brake actuator via your trailer plug.
Built into this unit are intelligent deceleration sensing components that sense how hard you have applied your brake and sends this proportional signal to your brake actuator.
The result is a smooth, instantaneous, controlled braking action.
The Genesis brake controller has an LCD display showing connection status, modes and power gain, sensitivity adjustment buttons and a trailer brake activation slide.
Download Installation Manual
Download Operation Manual
